CANtieCAR


[eng]
Hardware
- Powerful ARM-core MCU
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal connector for large storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- built-in solid state relays multiplexer for OBDII-pins 1,2,3,6,13 and 9,10,11,12,14
- 10 Leds: 6 - lines activity, 1 - USB TX activity, 1 bi-color - power state: USB and car + USB activity, 2 - status
- 2 DC-DC: 5V/500mA and programmable (5-30V)/1W
- 4 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL
- Systems: Up to 32V
- Speed: ISO-Lines up to 250kbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections
- Support additional equipment for cars

Emulated well-known adapters[/eng][rus]Технические характеристики
- Мощный MCU с ядром ARM
- Настоящее USB устройство: CDC, эмуляция FT232B/R, эмуляция FT2232С, MSD на SD Card
- SD Card: внутренный разъем для использовая как Запоминающего устройства на USB до 32 GB
- 3 независимых ISO9141/ISO14239 K-линии (ISO-Линии): OBDII-пины 7,8,15
- 2 мультифункциональные линии (MFLs): CAN - одно- и двухпроводный, K-линии, J1850, Выход DC-DC (5-30В)/1Вт и др.
- встроенный мультиплексор на твердотельных реле для OBDII-пинов 1,2,3,6,13 and 9,10,11,12,14
- 10 светодиодов: 6 - активность линий, 1 - передача по USB, 1 двухцветный - состояние питания: USB и а/м + активность на USB, 2 - статус
- 2 DC-DC: 5V/500mA и программируемый (5-30V)/1Вт
- 4 измерительных канала: Питание ISO-линий, Питание MFL, High MFL, Low MFL
- Системы: до 32V
- Скорость: ISO-линии до 250kbit/s; CAN до 1Mbit/s
- Исполнение в OBDII-разъеме
- Поддержка обновления прошивки
- Защиты от всевозможных неправильных включений
- Дополнительное оборудование для подключения

Эмулируемые адаптеры[/rus]
- USB-Serial (6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- Siemens Airbag 3.0
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- VOLVO 9998555
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- ELM323 v2.0+
- DigiProg OBDII Flasher
- KWP2000 Flasher
- KWP2000 PLUS Flasher
- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MAP3Diag
- CMD MPC5xx BDM Programmer v1251 (4/5:GND-5, 6:RST-10, 7:DI-4, 8:SCK-6, 14:IGN-9, 15:DO-3, 16:PWR-1)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander (up to 5.xx)
- LICZNIK USB Dongle for v4.8a
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
- FiatECUScan v3.4+
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008

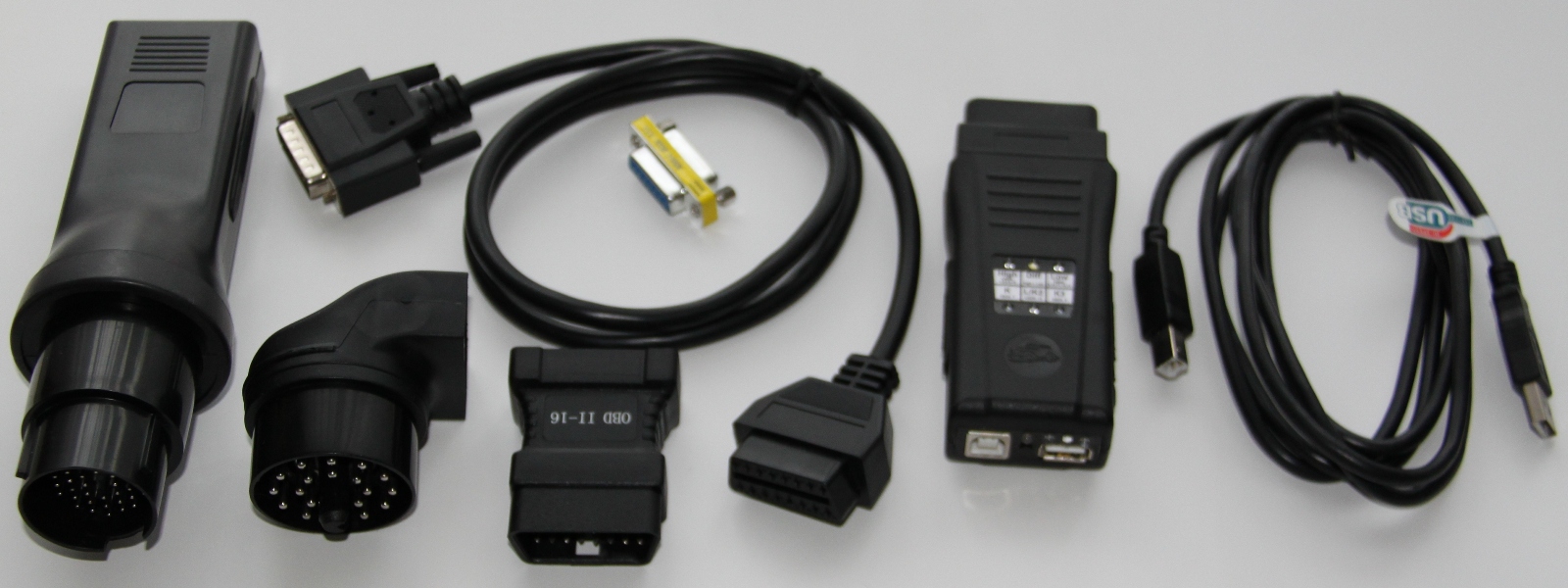

[eng]Additional equipment[/eng][rus]Дополнительное оборудование[/rus]

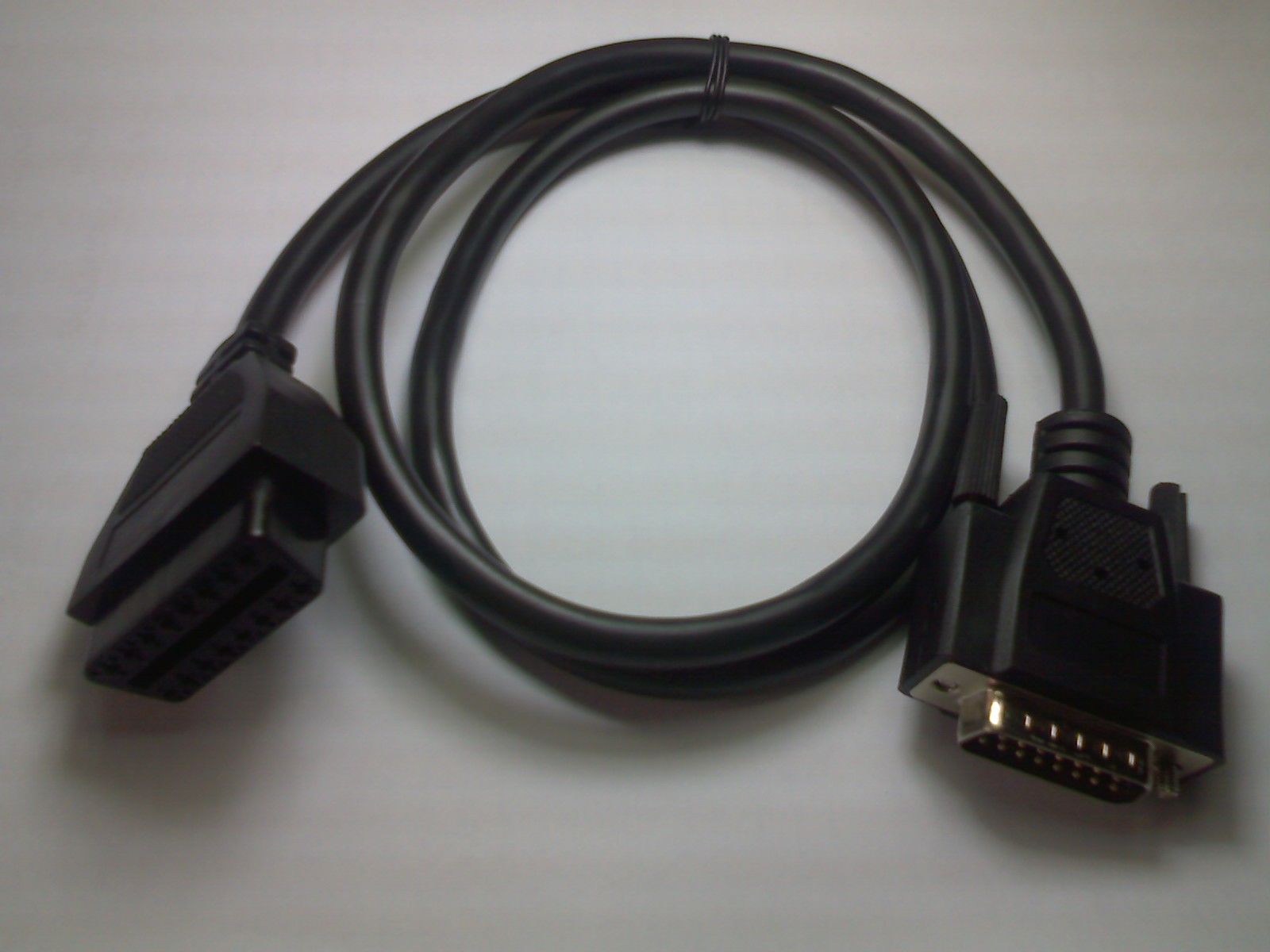

- OBDII-Female to DB15-Male Cable - 1 m

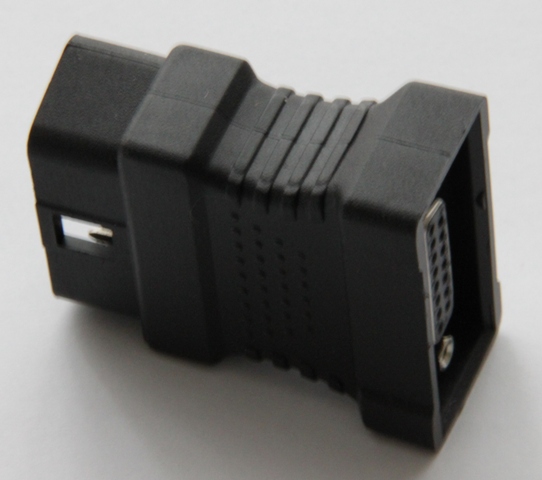

- DB15-Female to OBDII-Male-16pins Adapter

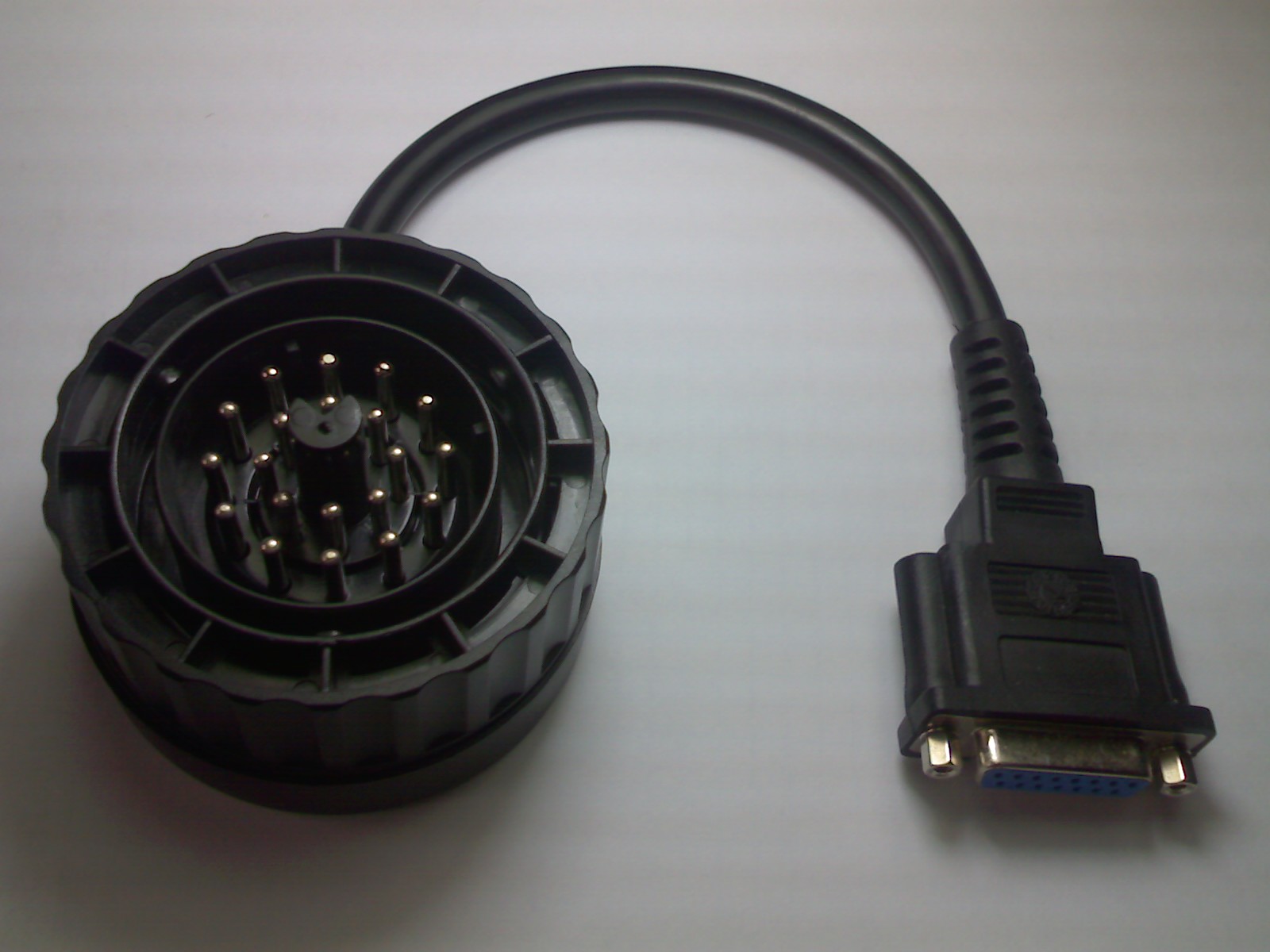

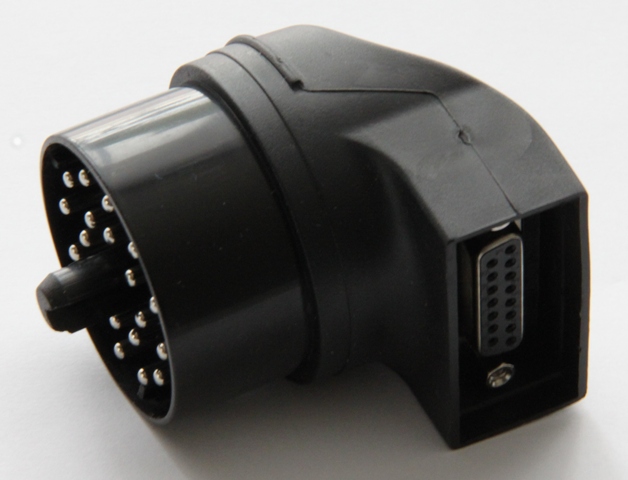

- DB15-Female to BMW-Male-20pins Adapter
- DB15-Female to BMW-Male-20pins Cable

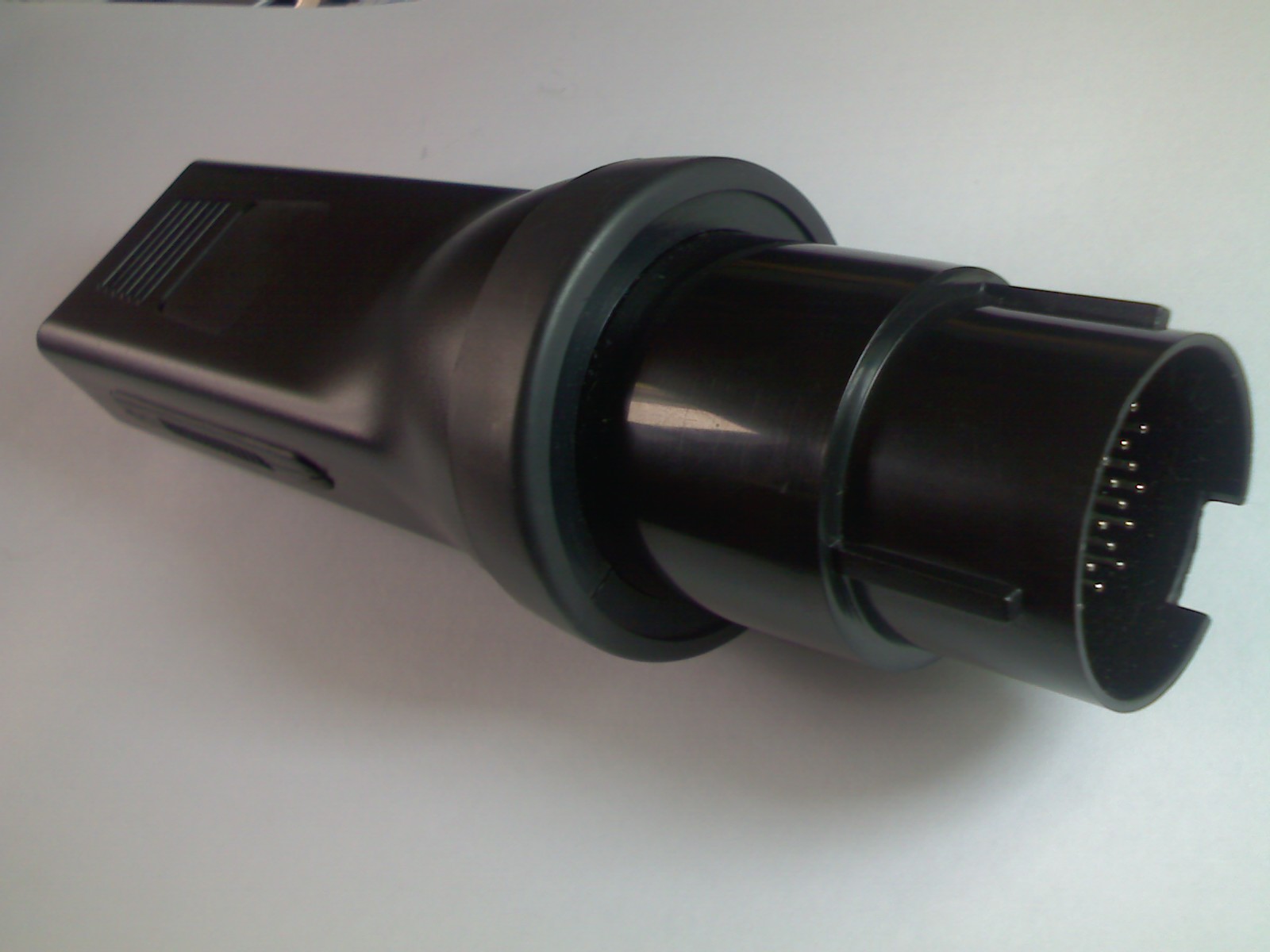

- DB15-Female to MB-Male-38pins Multiplexer

[eng]Status
Production (available from stock)

Support:[/eng][rus]Статус
Производится (доступен со склада)

Поддержка:[/rus]
e-mail: support@tiecar.net
downloads: http://www.tiecar.net/support.html#CANtieCAR

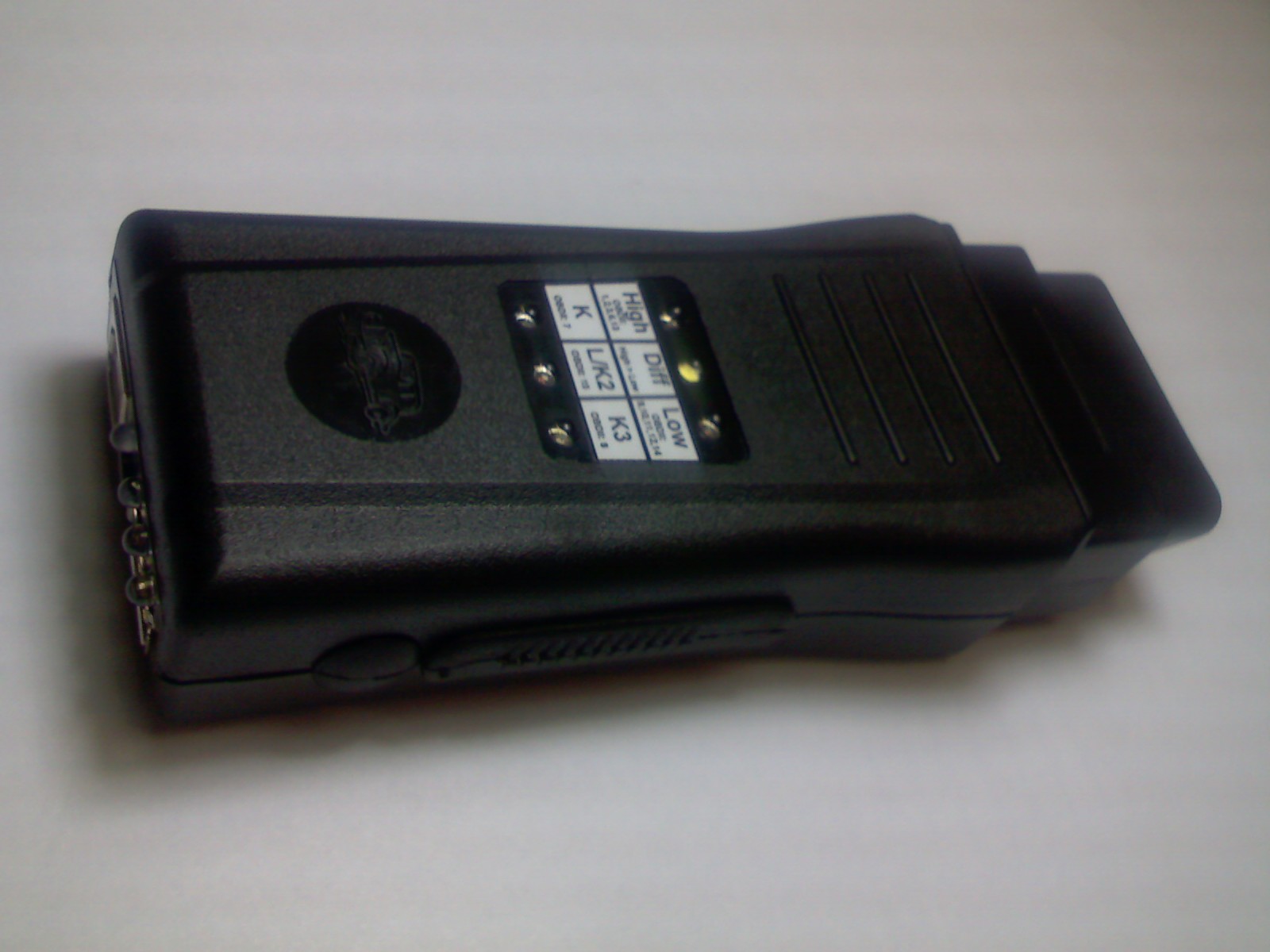

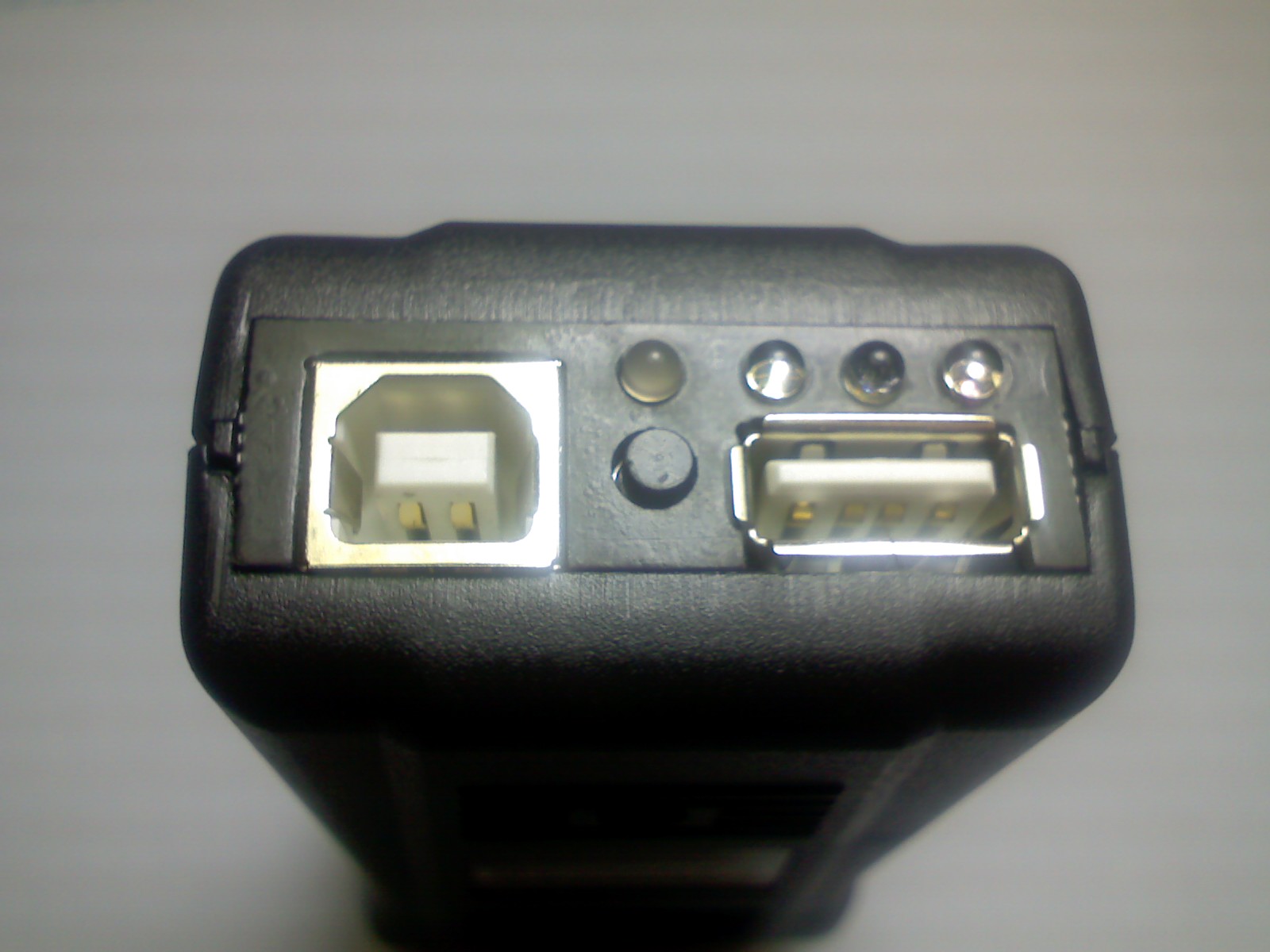

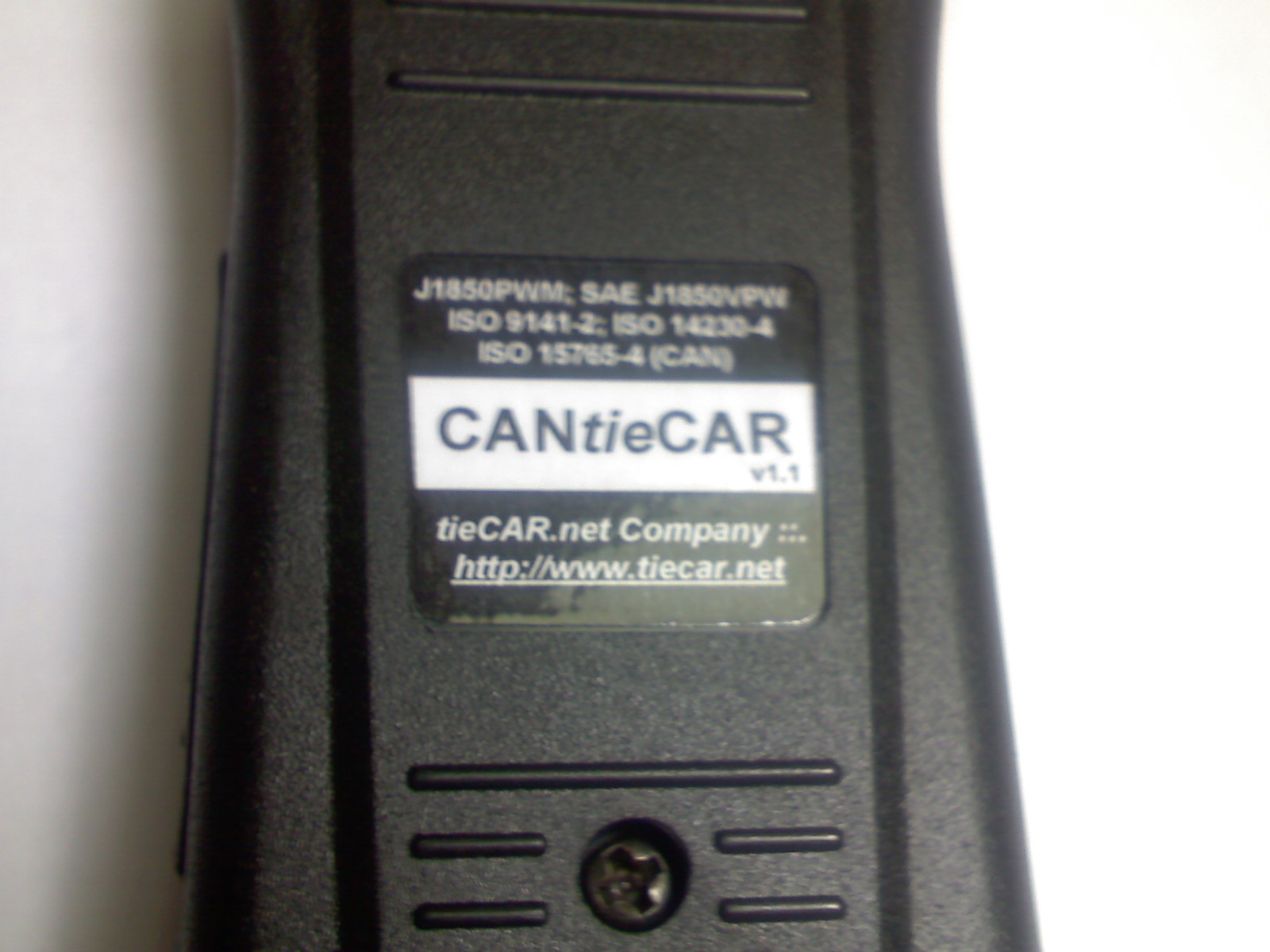

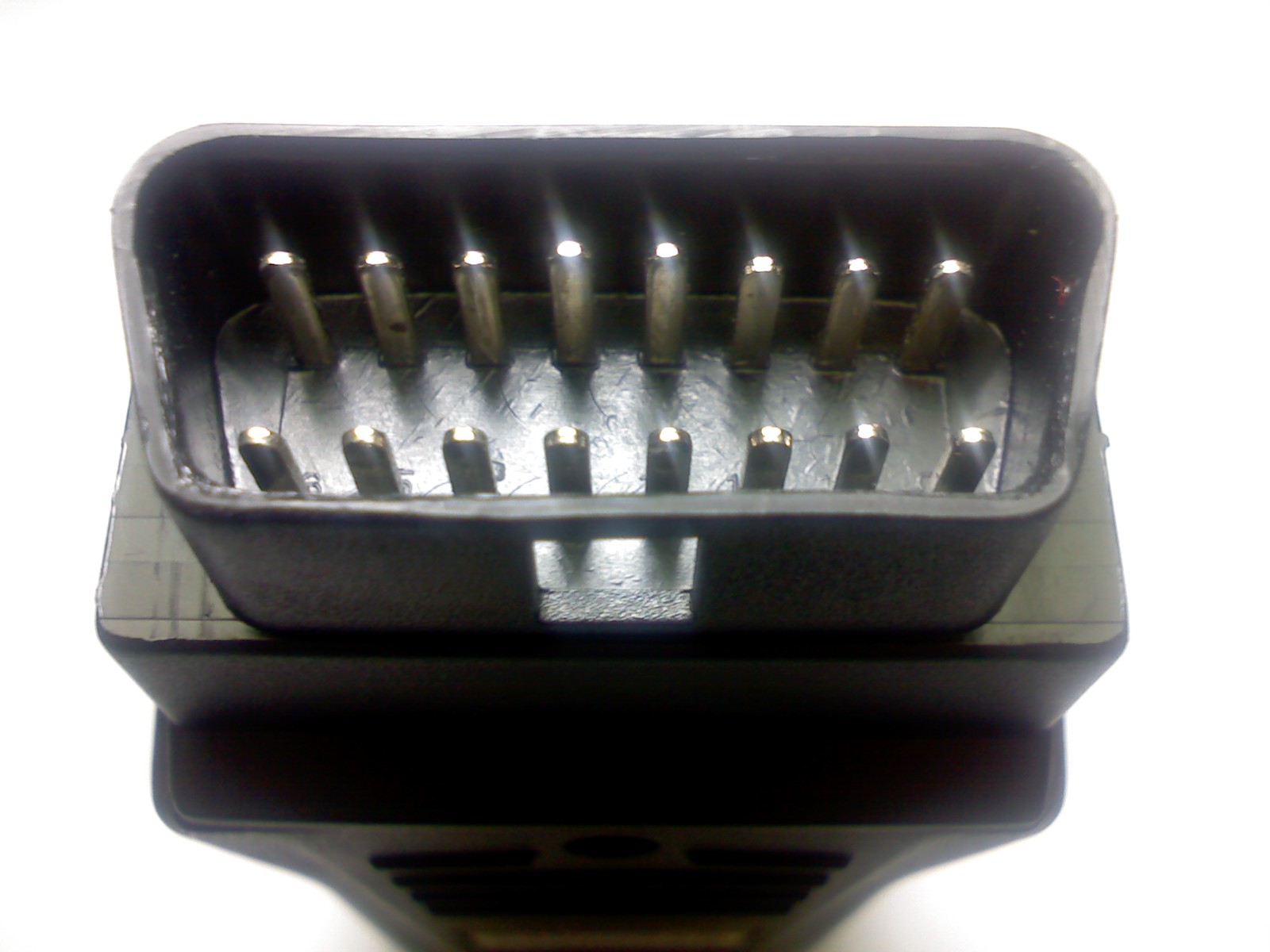

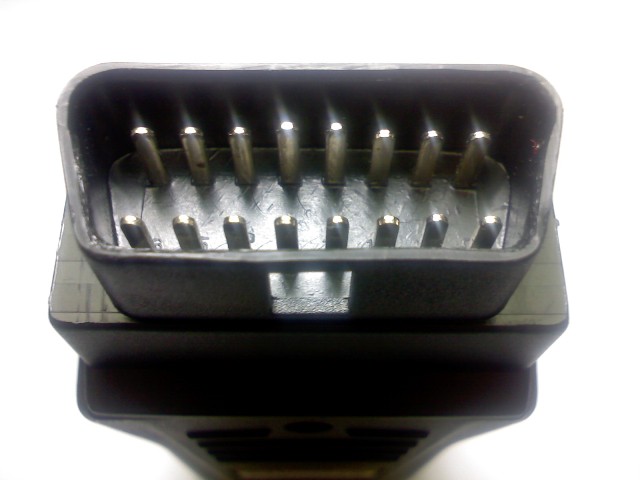

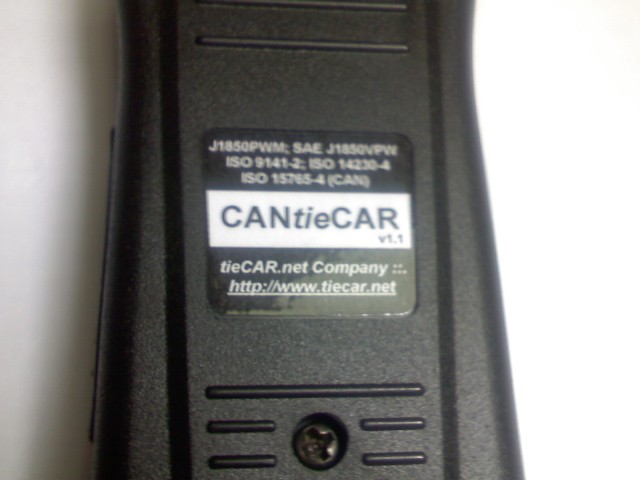

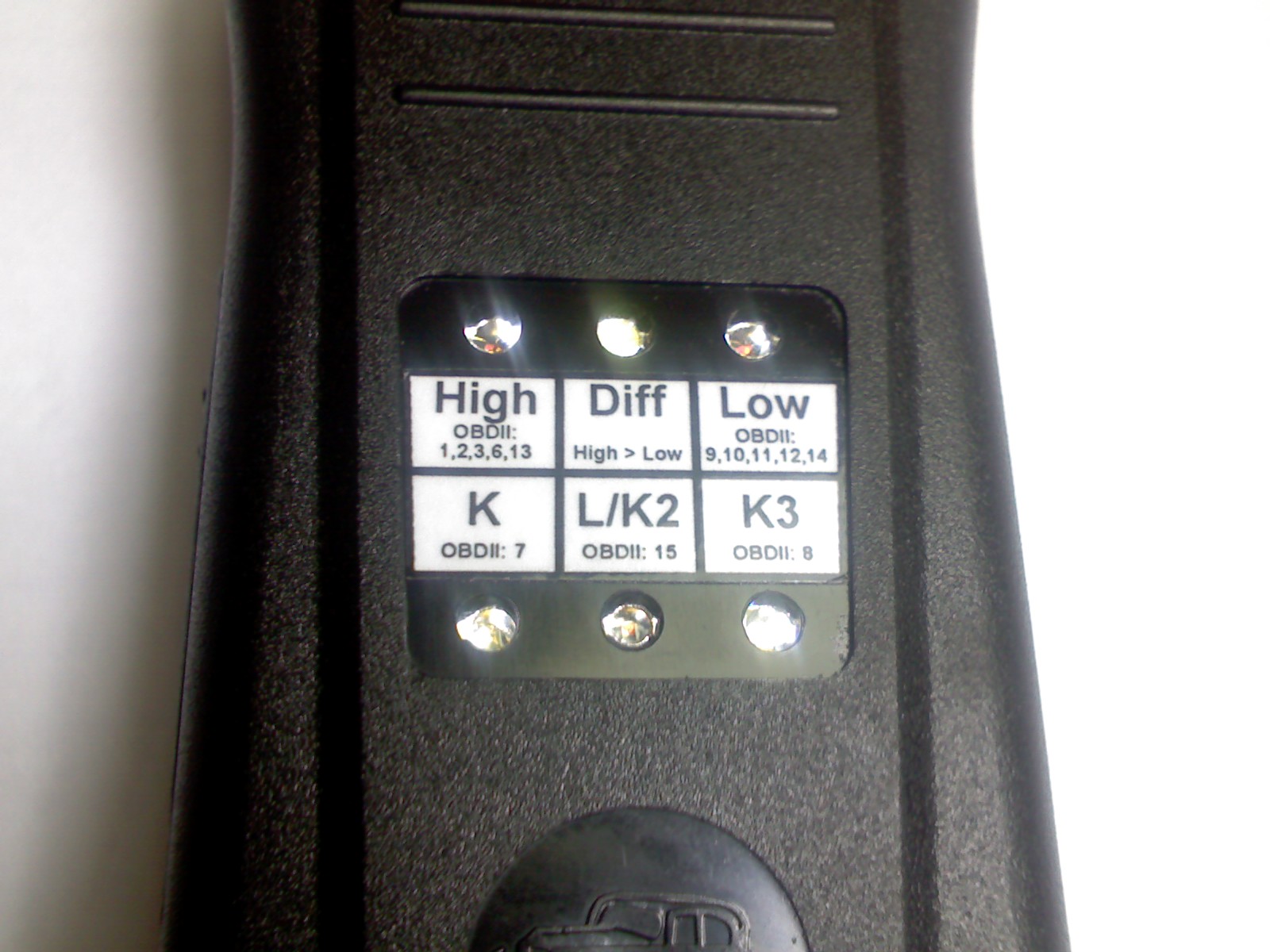

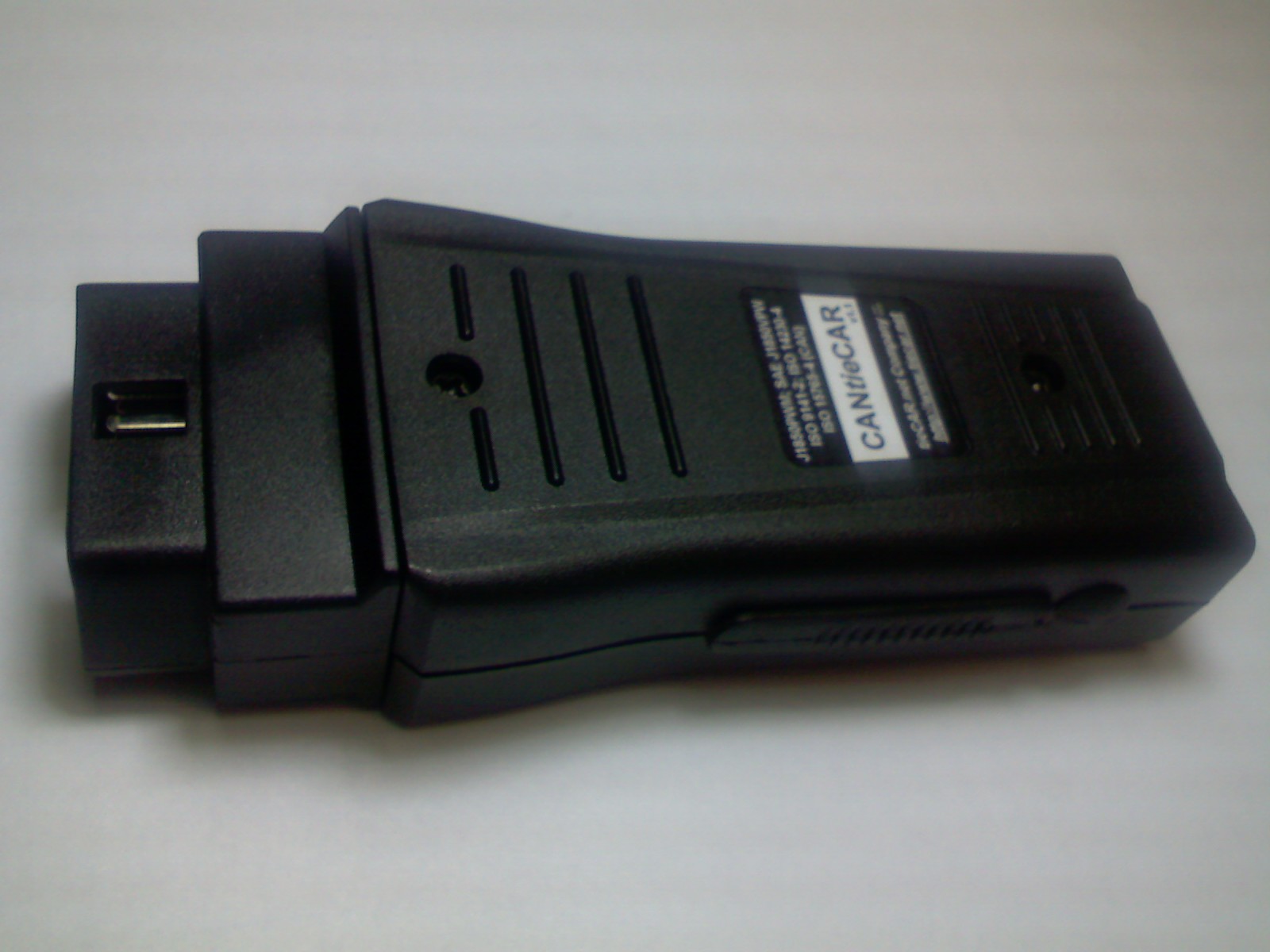

[eng]Pictures[/eng][rus]Вид[/rus] (v1.1):

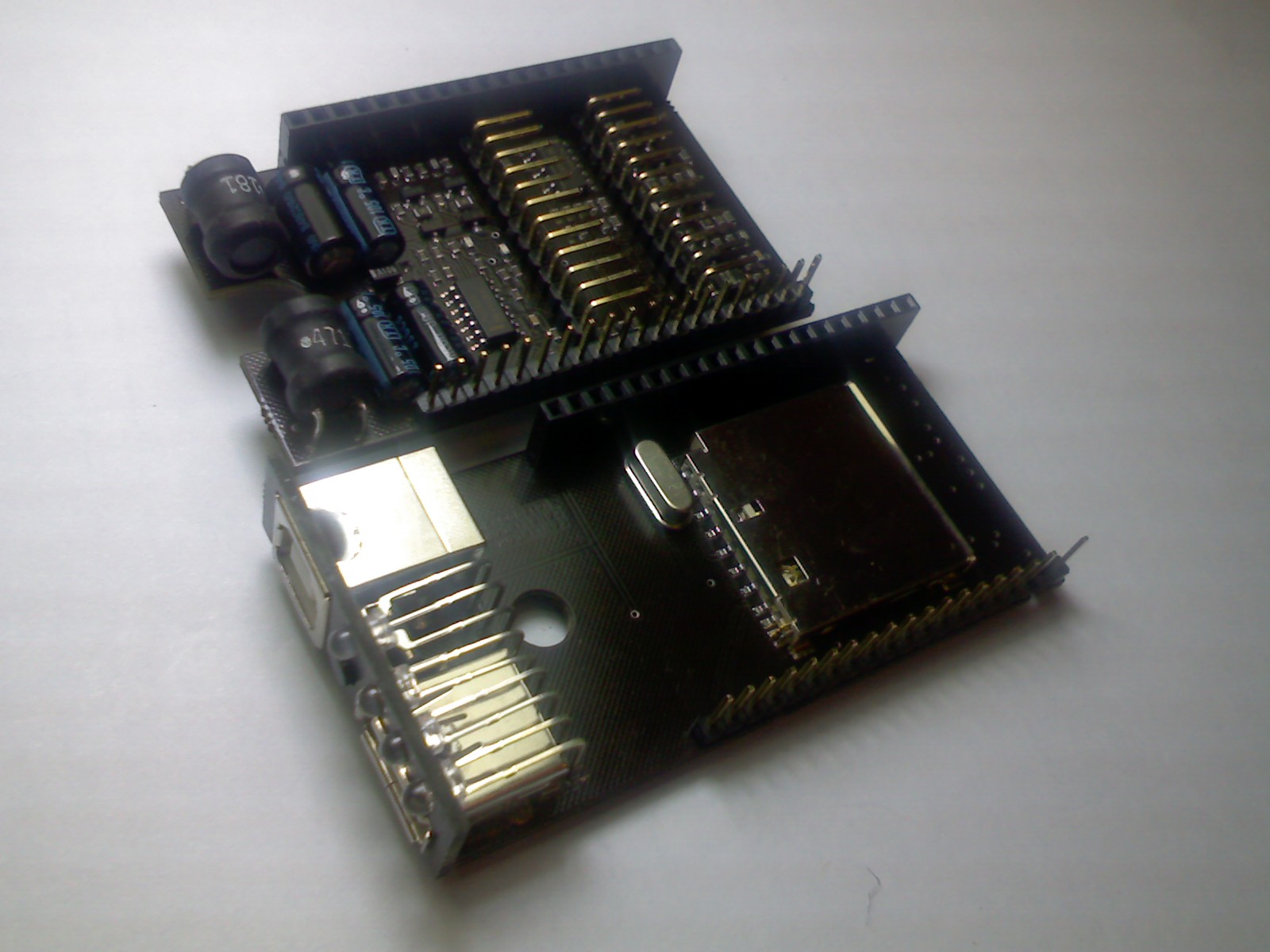

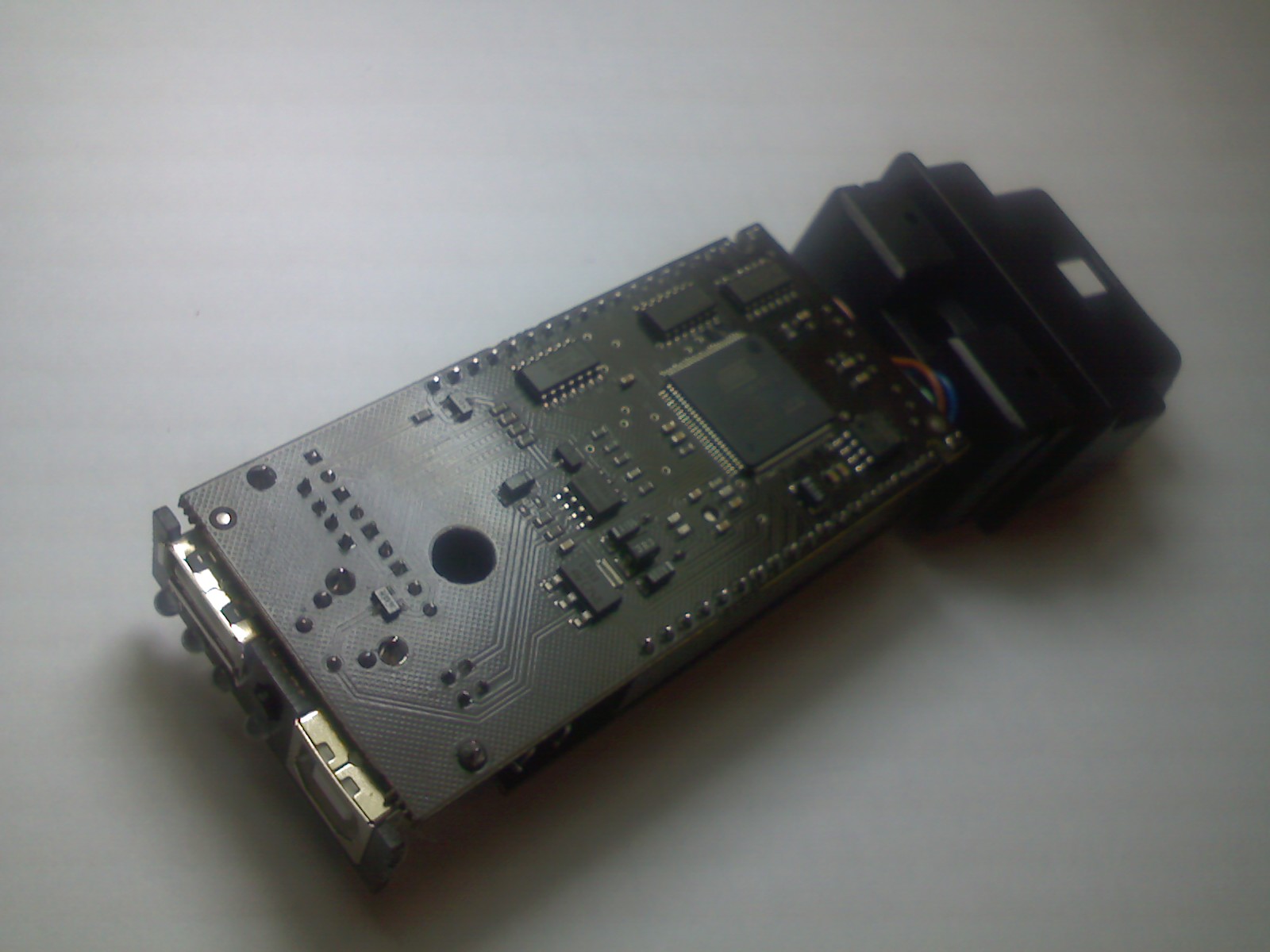

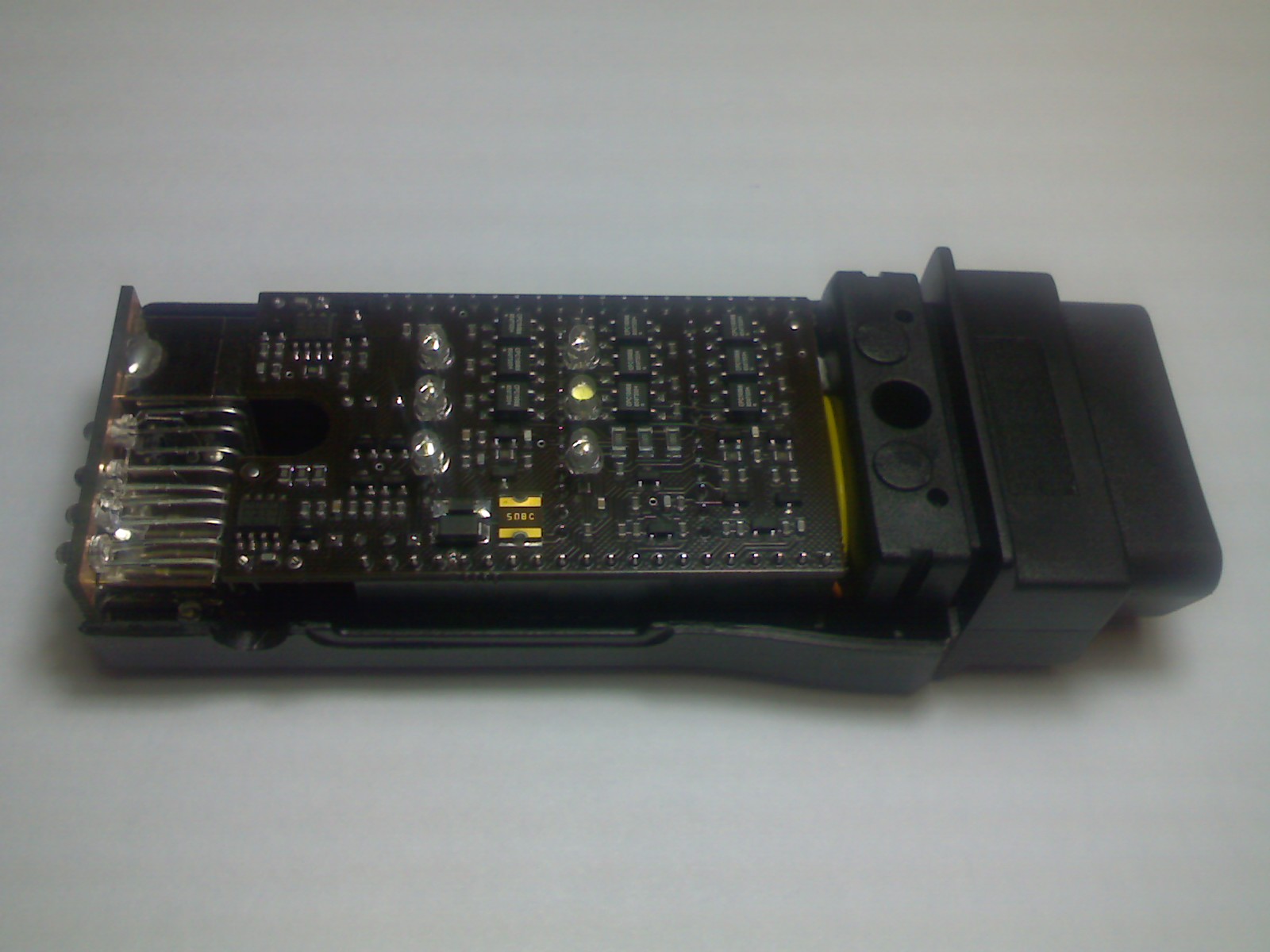

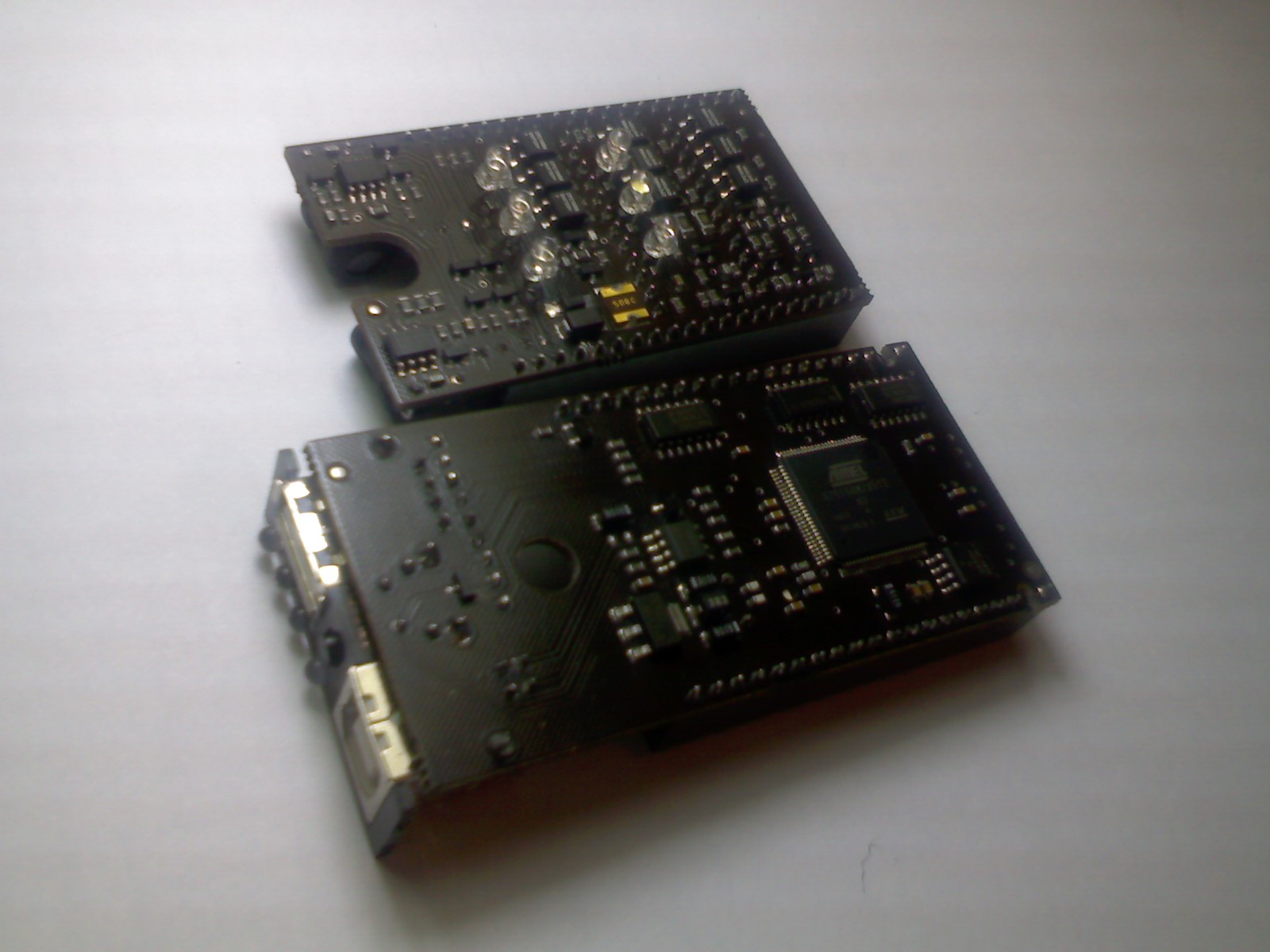

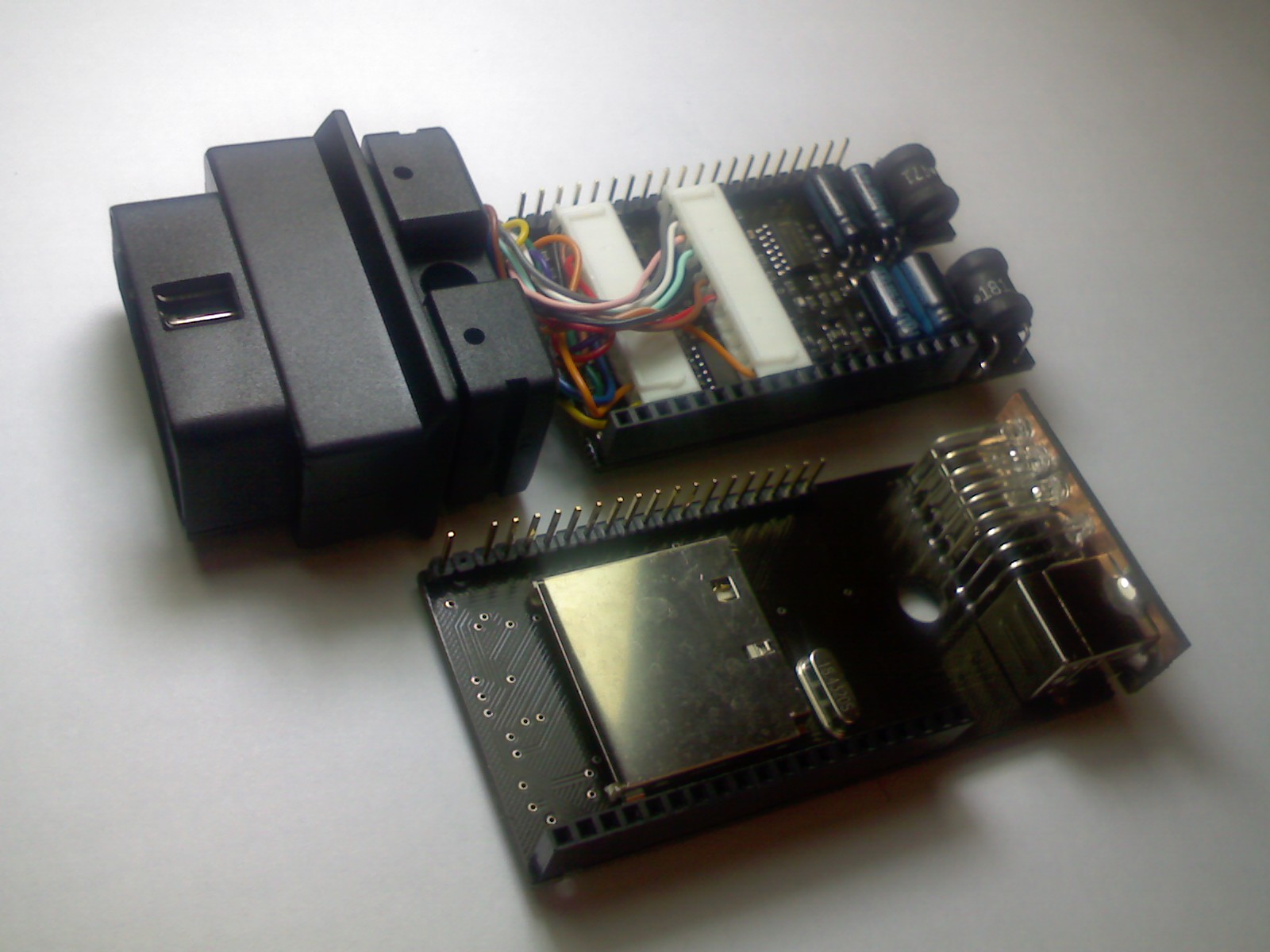

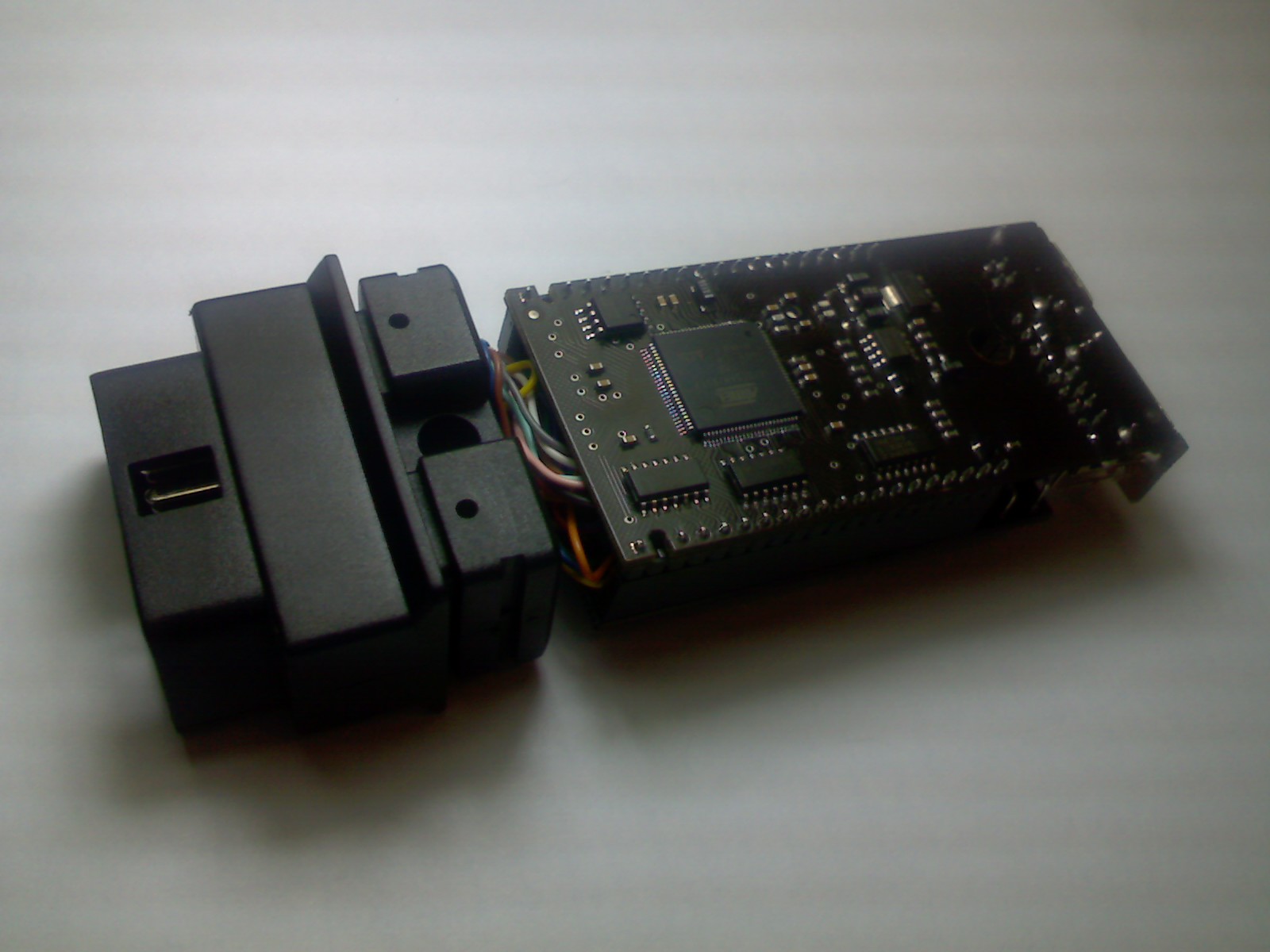

[eng]Inside[/eng][rus]Внутри[/rus] (v1.1):










« Last Edit: June 12, 2012, 13:56:00 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #1 on: September 04, 2010, 13:04:34 »

[eng] New mode was added[/eng][rus]Добавлен новый режим[/rus]

- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
« Last Edit: October 14, 2010, 18:56:40 by Admin » Logged
lnalex
Newbie
*
Posts: 1


« Reply #2 on: September 06, 2010, 18:26:05 »

Можно цену узнать?
Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #3 on: September 10, 2010, 16:18:59 »

[eng] New mode was added[/eng][rus]Добавлен новый режим[/rus]

- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line

« Last Edit: September 15, 2010, 16:37:54 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #4 on: September 10, 2010, 16:22:44 »

Можно цену узнать?
Пишите - can@tiecar.net
Logged
vovka.777
Jr. Member
**
Posts: 17


« Reply #5 on: September 16, 2010, 00:35:30 »

[eng] New mode was added[/eng][rus]Добавлен новый режим[/rus]

- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line


Было бы неплохо описание для чего они эти режимы!!!.Я вообще его взял для диагностики в основном по CAN-у!!! и вот жду пока режим появиться например ELM 327!!!!
Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #6 on: September 16, 2010, 10:19:16 »

[eng] New mode was added[/eng][rus]Добавлен новый режим[/rus]

- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line


Было бы неплохо описание для чего они эти режимы!!!.Я вообще его взял для диагностики в основном по CAN-у!!! и вот жду пока режим появиться например ELM 327!!!!

Flasher - это обычно адаптер для обновления прошивки в блоках...
Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #7 on: October 14, 2010, 16:52:32 »

[eng] New mode had been added[/eng][rus]Добавлен новый режим[/rus]

- CMD MPC5xx BDM Programmer v1251 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)

« Last Edit: October 18, 2010, 21:14:11 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #8 on: November 11, 2010, 22:34:59 »

[eng]New mode has been added[/eng][rus]Добавлен новый режим[/rus]
- USB-Serial (6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)

[eng]Latest firmware[/eng][rus]Последняя прошивка[/rus] - CANtieCAR Firmware (BW:1.6.6344/FW:1.5.7940)
« Last Edit: May 26, 2011, 15:18:39 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #9 on: December 01, 2010, 23:15:14 »

Bug in ELM323 v2+ has been fixed...

Latest firmware - CANtieCAR Firmware (BW:1.6.6344/FW:1.5.7980)
« Last Edit: May 26, 2011, 15:19:21 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #10 on: December 27, 2010, 23:15:48 »

[eng]New mode have been added[/eng][rus]Добавлены новые режимы[/rus]
- OpenPort v1
- OpenPort v1.2

[eng]Latest firmware[/eng][rus]Последняя прошивка[/rus] - CANtieCAR Firmware (BW:1.6.6344/FW:1.5.8034)
« Last Edit: May 26, 2011, 15:19:36 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #11 on: February 02, 2011, 10:56:29 »

[eng] New mode has been added[/eng][rus]Добавлен новый режим[/rus]
- BMW EDIABAS: D-CAN (STD:OBD + CAN)

[eng]Latest firmware[/eng][rus]Последняя прошивка[/rus] - CANtieCAR Firmware (BW:1.6.6344/FW:1.5.8298)
« Last Edit: May 26, 2011, 15:20:37 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #12 on: March 17, 2011, 19:28:12 »

SD/MMC Card for large USB Storage up to 32GB has been supported

Latest firmware - CANtieCAR Firmware (BW:1.7.6952/FW:1.5.8396)

Notes:
- Upload newest firmware FIRSTLY
- Then you can to install SD/MMC Card in built-in connector (this is required unscrewing of device...)
- Many modes would required to reinstall drivers
« Last Edit: May 26, 2011, 15:20:56 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #13 on: March 29, 2011, 00:47:07 »

[eng] New modes have been added[/eng][rus]Добавлены новые режимы[/rus]
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)


[eng]Latest firmware[/eng][rus]Последняя прошивка[/rus] - CANtieCAR Firmware (BW:1.7.6998/FW:1.5.8530)
« Last Edit: May 26, 2011, 15:21:19 by Admin » Logged
Admin
Administrator
*****
Posts: 123



WWW
« Reply #14 on: April 11, 2011, 00:10:48 »

[eng]New mode has been added[/eng][rus]Добавлен новый режим[/rus]
- OpenPort v1.3 Universal (11:Vpp/Boot)

[eng]Latest firmware[/eng][rus]Последняя прошивка[/rus] - CANtieCAR Firmware (BW:1.7.7062/FW:1.5.8614)
« Last Edit: May 26, 2011, 15:21:42 by Admin » Logged
